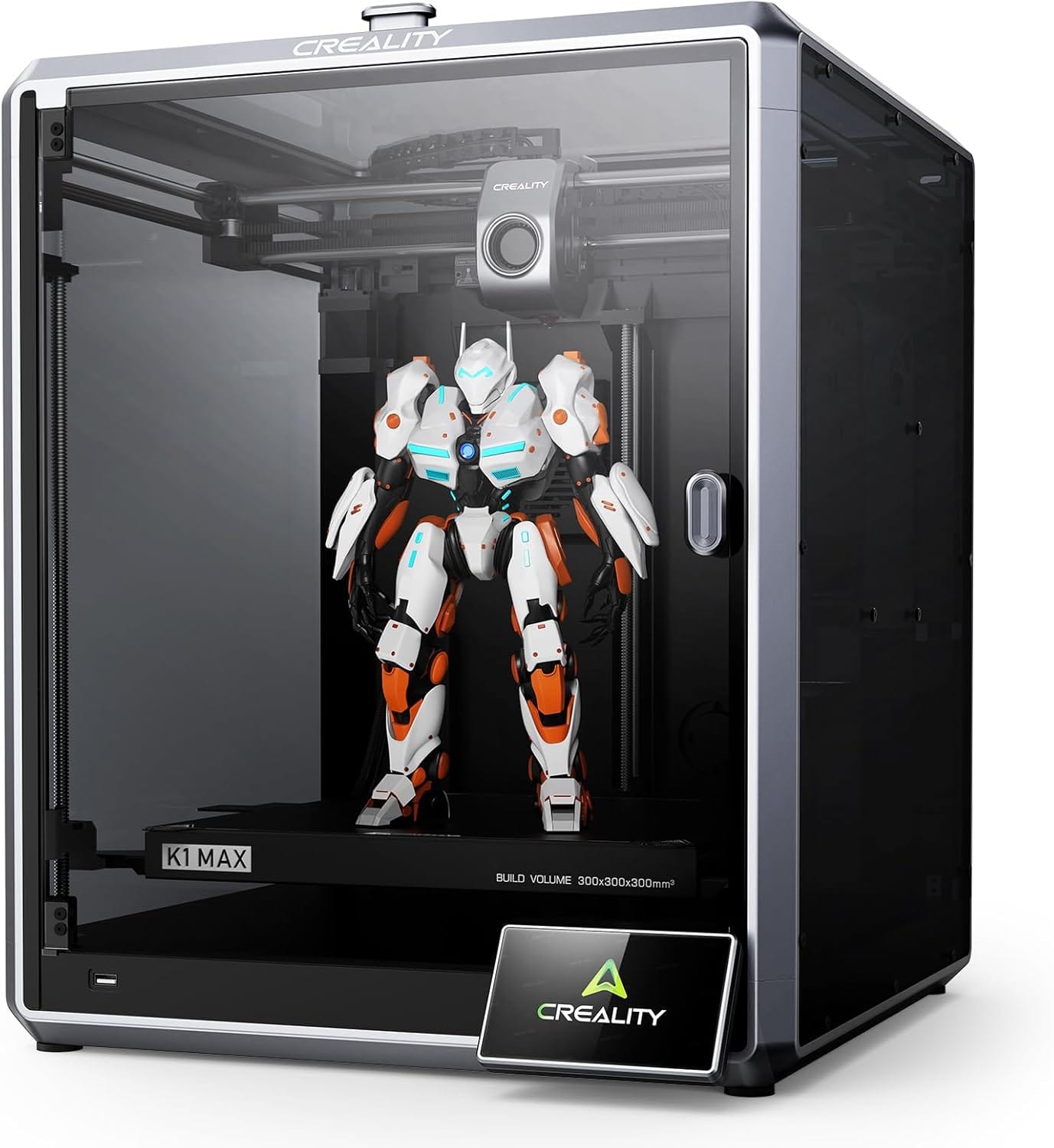

CREALITY K1 MAX:
The K1 Max from Creality is a powerful FDM 3D printer with extremely cool aesthetics and a large square build volume of 300 x 300 x 300 mm. The sturdy design allows the high-speed FDM giant to achieve extremely high print speeds without sacrificing print quality!
Fully assembled and ready to use
The K1 Max is shipped to you fully assembled and calibrated! A pre-installed simple quick start guide will walk you through the setup of the 3D printer, allowing you to start printing right away!
Large build volume and maximum space utilization
The elegant K1 Max features a large build volume of 300 x 300 x 300 mm, yet it has maximum print space with the most efficient use of space, which means the printer still boasts a compact device size! This makes the K1 Max ideal for prototyping and for printing design samples.
Sturdy aluminum alloy frame
The sturdy unibody frame of the K1 Max is custom-made from die-cast aluminium alloy and CNC-milled. The highest precision and stable print behaviour even at high speed are thus given!
Robust construction for high speeds and smooth printing
The sturdy CoreXY structure and lightweight printhead weighing only 190 g are designed for high speeds. The robust frame, combined with the lightweight design of moving parts, ensures less inertia and vibration, and more stability!
Manual fully automatic bed levelling and calibration
The heated bed of the K1 Max has strain sensors through which a precise levelling network can be determined. Thanks to the AI-LiDAR scanner, millions of measurement points are measured on the print bed surface to ensure precise levelling. The measurement data from both of these systems is combined by K1 Max autonomously and ensures that unevenness on the build plate is automatically compensated for. Truly smart!
With AI-LIDAR for a beautiful first layer
With a resolution of 1 µm, the intelligent LiDAR scanner monitors the first layer and independently sets the ideal flow quantity for it. In the event of error messages, the K1 Max stops automatically and lets you know via smartphone or PC that an error has occurred.
KI camera for print monitoring
K1 Max has an integrated AI camera, which it uses to monitor the printing process continuously and in real-time. This detects printing errors, foreign objects as well as loose parts in the build space as well as reporting them to the user. Thanks to a time-lapse function, you can also make beautiful recordings of your printing processes and share them with other 3D enthusiasts!
Real-time monitoring of print progress via PC or smartphone
With an existing network connection via WLAN or LAN, you can keep an eye on the print progress via PC or smartphone. If you connect multiple K1 Max printers online, you can even start batch production and maximize, duplicate or group your prints! Convenient.
Fine textures without Z-wobbling
The precisely guided and always equally positioned z-axis reduces z-banding and creates incredibly fine textures without layer offsets.
Flow calibration through LiDAR monitoring
The K1 Max is designed so that LiDar determines the perfect flow for each filament through multiple test lines before printing begins. This way, the right amount of filament is always processed: So you don't have to struggle with gaps caused by too little extruded material or small balls (blobs) caused by too much extruded material! With the K1 Max there's no more hassle!
Built-in air purifier
The K1 Max's built-in air purifier filters unpleasant odours and fine particles created by prints.
Other features:
- 4.3 inch touchscreen
- Smart Features: AI Camera, AI LiDAR, Power Loss Recovery, Filament Runout Sensor, Input Shaping, Lightning Kit, Sleep Mode
- Compatible with various slicer software such as Creality Print, Cura, Simplify3D, PrusaSlicer
- Technology: FDM
- Year: 2023
- Assembly: Plug & play (ships virtually ready to print – plug it in and go)
- Mechanical arrangement: CoreXY
- Build volume: 300 x 300 x 300 mm
- Feeder system: Direct, dual-geared
- Nozzle: 0.4 mm, hardened steel
- Max. hot end temperature: 300 °C
- Max. heated bed temperature: 120 °C
- Print bed material: Removable, flexible
- Bed leveling: Auto-bed leveling using load cells, lidar
- Connectivity: Wi-Fi, USB, Ethernet
- Filament sensor: Yes
- Filament diameter: 1.75 mm
- Frame dimensions: 435 x 462 x 526mm
