Outstanding Mechanical Performance
PPA-CF delivers enhanced mechanical proper- ties, making it ideal for printing high-precision and high-strength structural components that meet demanding engineering requirements.
| Mechanical Performance Comparison |
| Standard PA-CF | PPA-CF | |
| Strength | 149 MPA | 250 MPA |
| Stiffness | 4100 MPA | 5320 MPA |
| Water Absorption | 2.5% | 1.5% |
15% Carbon Fiber Content
With 15% carbon fiber, it ensures greater dimensional stability during printing, low shrinkage, no warping, and perfect alignment between printed model parts.
Explore Unlimited Possibilities of Creation
The saturated water absorption rate of PPA-CF is only half that of standard PA, significantly improving the di- mensional stability and mechanical performance of nylon materials after moisture absorption.
High Toughness and Impact Resistance
PPA-CF offers exceptional toughness, making it an ideal printing material for models that endure impacts, collisions, and vibrations.
Display

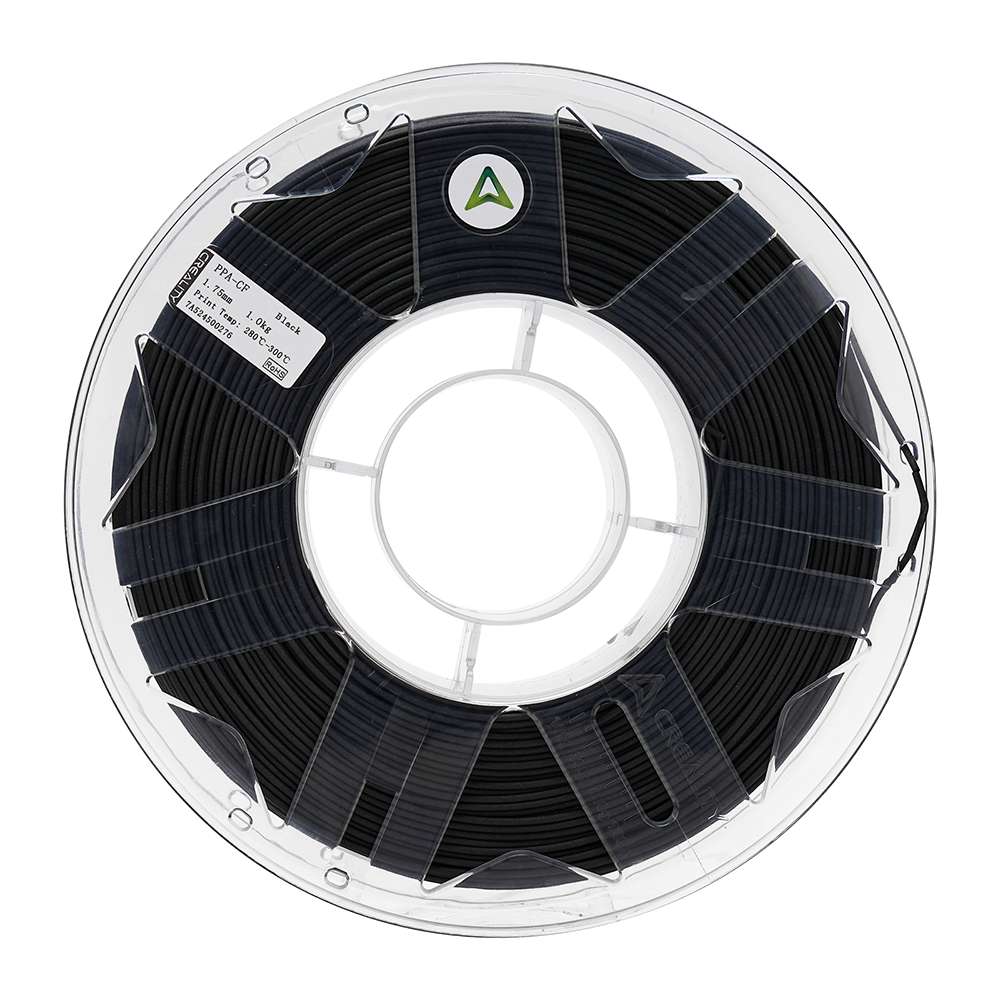

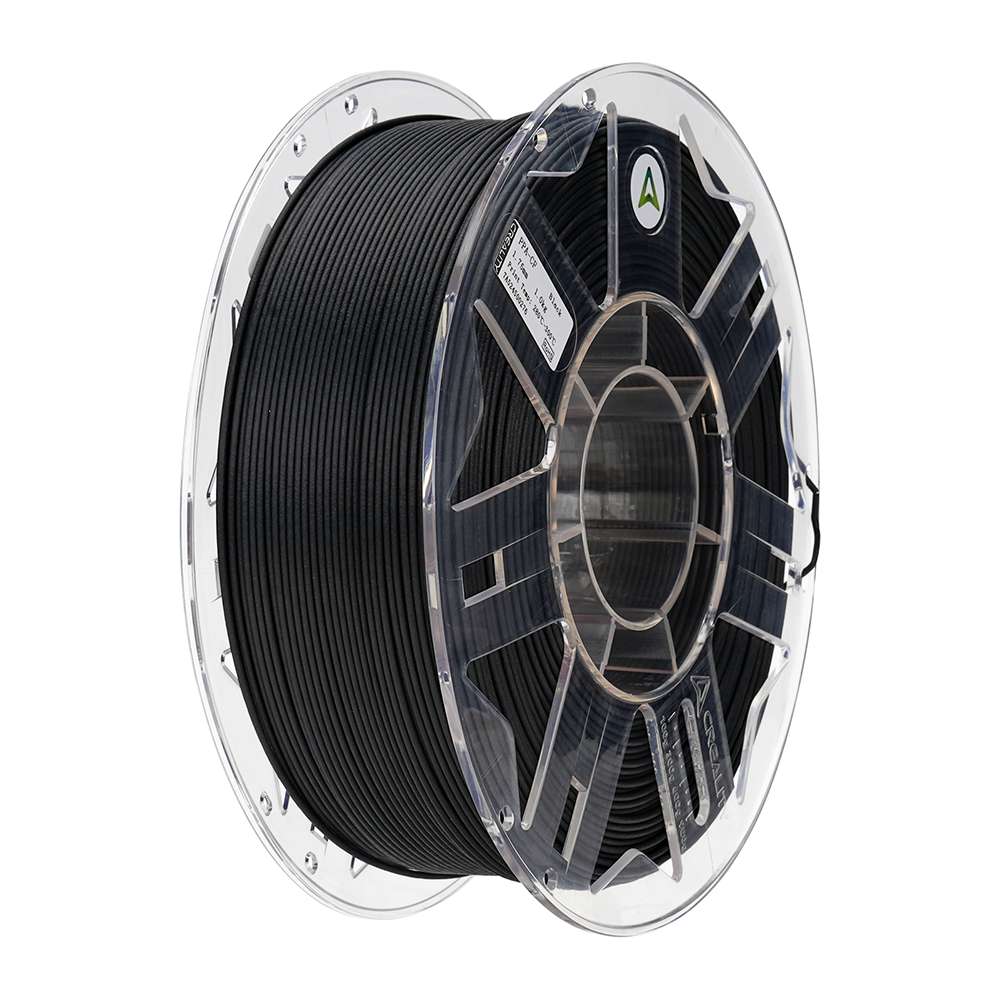

PPA-CF Carbon Fiber 3D Printing Filament 1kg
Density: 1.06g/cm³
Printing temperature: 280-300°C
Heated bed temperature: 90~105°C
Printing speed: 100mm/s
Drying conditions: 80 °C, 8-12 h (Umluftofen)
Enclosed printing required: Yes
Filament diameter: 1.75mm
Net weight: 1Kg/2.2lb
Gross weight: 1.29Kg/2.8lb
Package dimensions: 210*210*70mm
Printing surface: High-temperature printing plate, engi- neering plate, PEI printing plate
