Medium temperature additive manufacturing
❖ Description

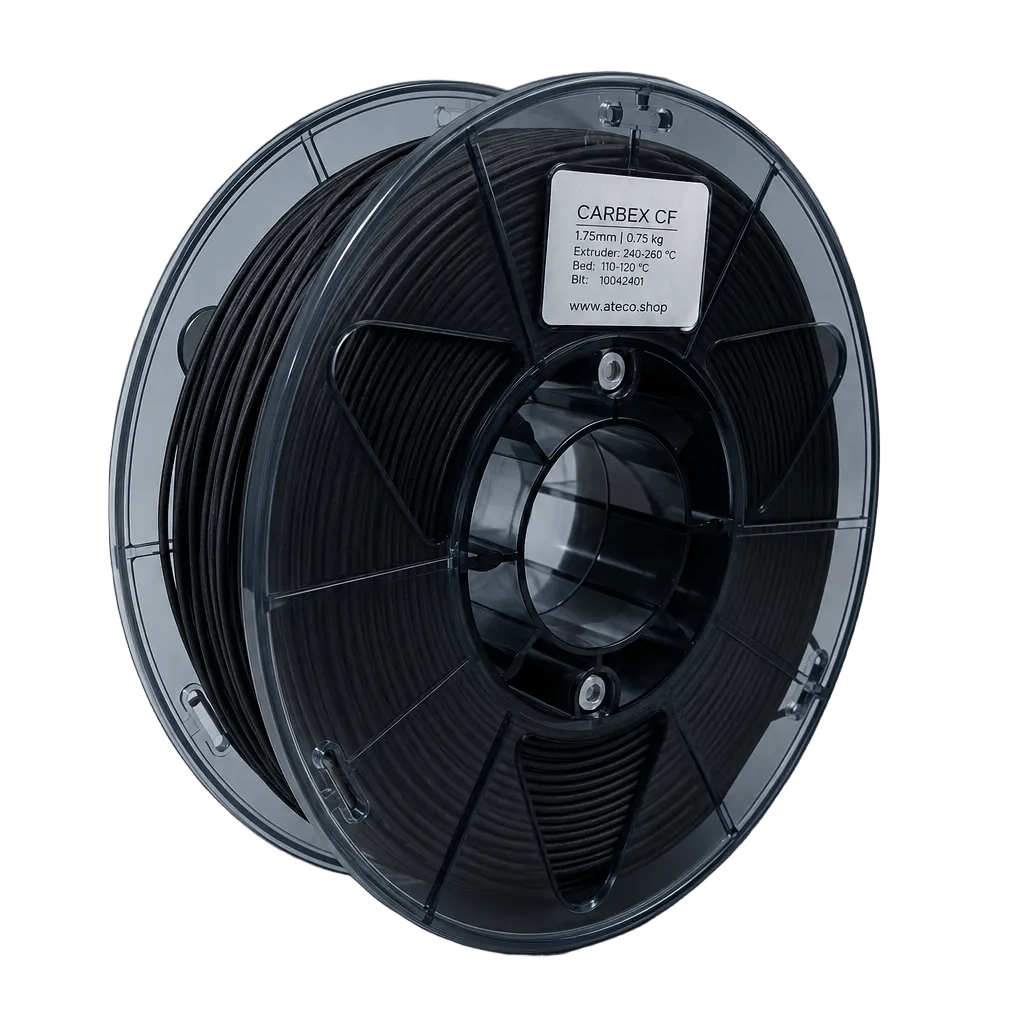

Carbex CF filament is modified ABS resin reinforced with carbon fiber for maximum
stiffness and long-term performance. Carbex CF filament is ideal for functional prototypes,
jigs, fixtures, shop aids and low volume production parts. In addition to high stiffness and
high strength, carbon fiber reinforcement offers excellent thermal properties, and superior
dimensional stability.
❖ Technical Data
| Properties | Typical values |
| Appearance | Black color |
| Mass fraction of carbon fibers, % |
5,0 |
| Density at 23°С, g/cm3 |
1,1 |
| Tensile modulus of elasticity at 23°C, MPa | 2500 |
| Tensile strength at 23°C, MPa | 65,0 |
| Elongation at break at 23°C, % |
38 |
| Charpy impact strength, kJ/m2 |
8,5 |
| Shrinkage, % |
0,2-0,4 |
| Melting temperature, °C |
240 |
| Melting Flow Index, 260°C, 2,16 kg, g/10 min | 12,0 |
| Maximum print temperature, °C | 300 |
