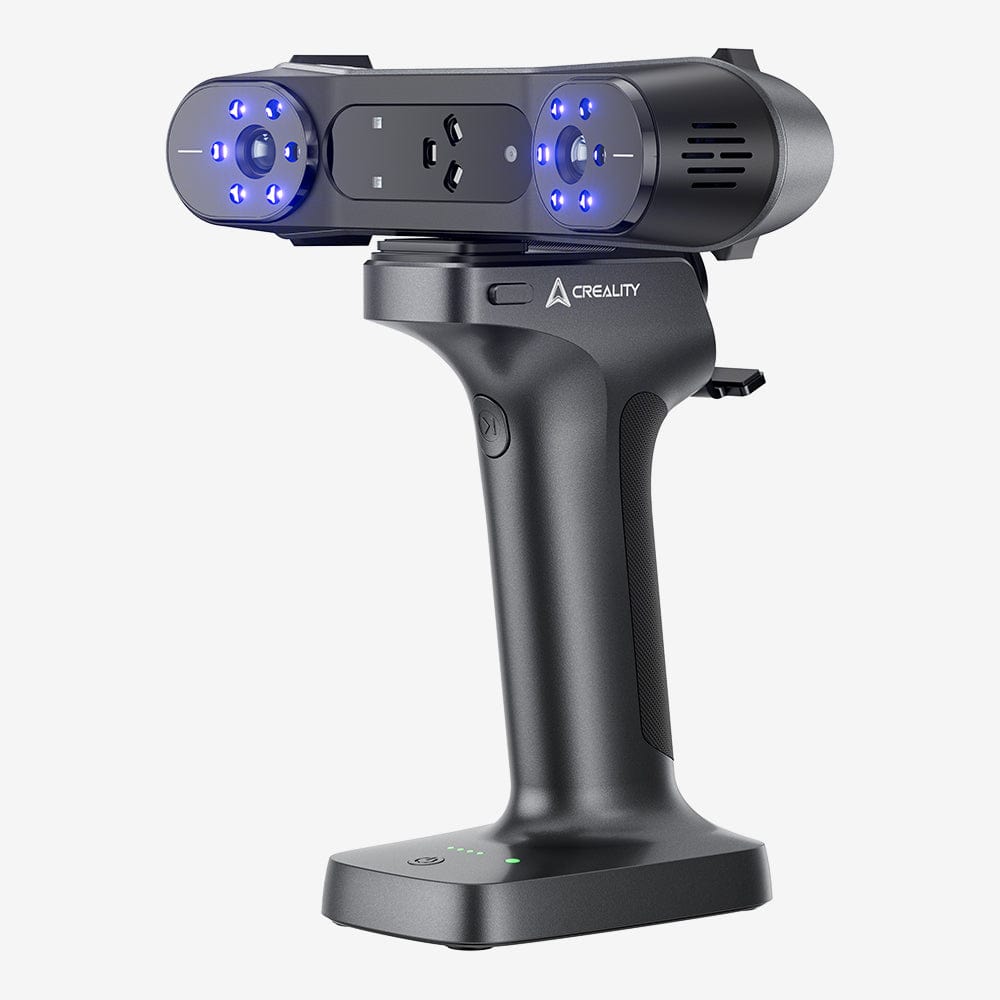

Creality Raptor X scanner

4008050054

Dhs. 16,878.00

Tax included. Shipping calculated at checkout

Quantity

Pickup available at Al Barsha1

Usually ready in 4 hours

View store information

Description

World's 1st Wireless Hybrid Blue Laser & NIR Scanner
34+7 Blue Laser Lines
Portable Wireless Scanner
Metrology-grade Accuracy up to 0.02mm
Objects between 5-4000mm
Fast Wi-Fi 6 Data Transmission

34+7 Blue Laser Lines
Efficiency and Details

34 cross laser lines for scanning medium to large objects quickly , with the advanced laser line encoding and decoding algorithm to handle denser multi-beam lasers. 7 parallel laser lines for partial HD scanning , improves both the efficiency and details of 3D Scanning.

34 Cross Laser Lines
High Efficiency, Reliable, Accurate

Easily and Quickly Scan Medium to Large Objects with reliable accuracy.Scanning a whole car in One Go.
The laser array arrangement enables rapid and effortless capture of complete and accurate 3D data from medium to large objects.

High-quality 1,020,000 points/s Fast Scan Speed

The 34 cross laser lines can process up to 1,020,000 points per second, making it ideal for quickly scanning medium to large objects.

7 Laser Lines for
Partial HD Scanning

Each laser line is as fine as 0.1mm, capturing sharper edges and richer details . Equipped with a 2.3-megapixel 3D imaging camera, it scans and restores fine details with high accuracy.

Volumetric Accuracy

0.02mm+0.06mm/m

High-speed Scanning
Beyond Your Imagination

Laser Line Scanning
Achieve scan frame rates of up to

60fps

Infrared Structured Light Scanning
Scan at frame rates of up to

30fps

Portable Wireless Scanner

RaptorX features a wireless handle seamless data transmission,
redefining portability in blue laser 3D scanning.

*Note: With the mirroring function, the real-time scanning can be seen easily and wirelessly from the phone.

Wi-Fi 6 AX6000
Fast Data Transmission

Equipped With advanced lossless data compression algorithm, RaptorX allows you to transfer scans quickly and easily over Wi-Fi 6 from the scanner to the your computer.

Low latency

10mS

Transmission rate

4.7Gbps

AX6000_________2x

AX3000_________1x

Large Capacity & Fast Charging

Charges to 80% in just 1.5 hours, making outdoor scanning more convenient and worry-free. Large capacity 35400mWh battery (Airplane Safe).

35400mWh (Airplane Safe)

Magnetic Quick
Setup

Battery
indicator

NIR Structured Light Scanning

Markerless Scanning Unique Face & Body Algorithm

High Performance Structure, Details Revealed

. 2.3 Million Pixel 3D Imaging Camera
. Low distortion lens, less than 5‰
. φ20mm large depth of field lens
. 9-elements glass lens
. Metal lens barrel and holder

Advanced temperature compensation algorithm, it can improve temperature stability and ensure accuracy.

Objects between
0.2-157''/ 5-4000mm

Combining blue laser lines with infrared structured light, RaptorX can scan objects ranging in size from 5*5*5
mm³-4000*4000*4000 mm³. Effortlessly scanning engineering parts, molds, human bodies, automobile components, and more.

Laser Line Scanning

Minimum scan size: 5*5*5 mm³,
Maximum scan size: 4000*4000*4000 mm³.

NIR Structured Light Scanning

Scanning objects ranging from
150*150*150mm³-2000*2000*2000mm³.

Wider Applications
Better Performance

Outdoor Scanning

Blue Laser with strong environmental resistance, delivers outstanding performance even in outdoor environments.
7-line laser: ≤50,000 lux
34 cross lines: ≤100,000 lux

With strong material adaptability, you can scan black/metal objects without sprays.

Equipped with One-Shot 3D imaging technology,RaptorX is naturally stabilized and less likely to tracking loss. Fast backtracking speed ensures smoother handheld scanning.

Blue light provides supplementary light for laser line scanning.
White light is used to enhance the brightness of color textures.

	RAPTOR X	RAPTOR
Scanning Mode	7 blue parallel laser lines 34 blue parallel laser lines (cross) NIR(infrared binocular structured light)	7 blue parallel laser lines 0.02mm NIR(infrared binocular structured light)
Accuracy up to	0.02mm 0.05mm	0.02mm @ 100mm [1] 0.1mm
Volumetric Accuracy	0.02mm+0.06mm/m 0.05mm +0.1mm/m	/ /
Scanning rate	420,000 measurements/s 1,020,000 measurements/s 3,580,000 measurements/s	420,000 measurements/s 3,580,000 measurements/s
Single Capture Range	270mmx170mm @300mm 270mmx170mm @300mm 270mmx170mm @300mm 665mm×574mm @1000mm 341mm x 232mm @400mm 397mm x 290mm @500mm 452mm x 348mm @600mm 665mm×574mm @1000mm
Working distance	150-400mm 200-600mm 170-1000mm	150-400mm 170-1000mm
Outdoor Scanning	≤ 50,000 lux ≤100,000 lux ≤30,000 lux	≤ 50,000 lux ≤ 30,000 lux
System Support	Windows 10/11(64 bit):i7-Gen10 and above, Nvidia graphics card (8GB video memory and above), 32GB memory and above Minimum：i7-Gen7, Nvidia graphics card (6GB video memory), 16GB memory macOS: 11.7.7 and above, Apple M1/M2/M3 series processors; RAM: 16GB and above	Windows 10/11 (64 bit): i7-Gen7, Nvidia graphics card (6GB video memory), 16GB memory or higher macOS: 11.7.7 and above, Apple M1/M2/M3 series processors; RAM: 16GB or highe
Wireless Scanning	Support Support Support	Supported in conjunction with wireless scanning accessories
