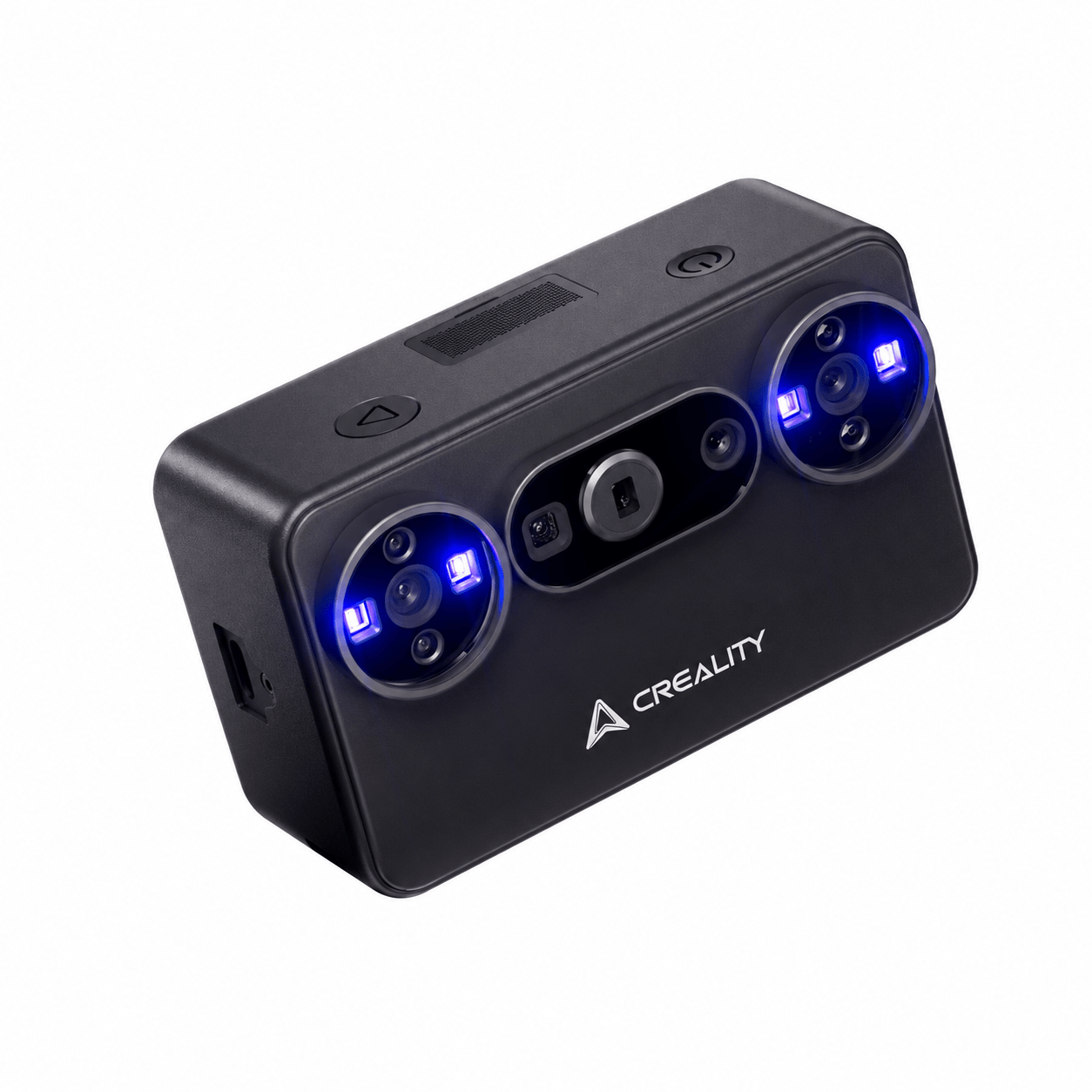

Creality Pika Wireless 3D Scanner
Capture objects wherever inspiration strikes with the compact and fully wireless Creality Pika 3D Scanner. Its dual-light scanning system combines seven parallel blue laser lines for high-precision detail capture with NIR structured light for fast, marker-free scanning of larger objects, people, and complex shapes.
The blue-laser mode delivers accuracy of up to 0.03 mm and scanning speeds of up to 110 FPS when connected to a PC. For faster full-body and large-object capture, NIR mode supports scanning volumes up to 2,000 × 2,000 × 2,000 mm with geometry and texture alignment.
Designed for effortless mobile use, Pika features a built-in 2.97-inch touchscreen, Wi-Fi 6 connectivity, an eight-core processor, and two replaceable 3350 mAh batteries. At only 260 g, it is easy to carry and operate without restrictive cables.
Pika can scan outdoors in lighting conditions up to 110,000 lux and is designed to capture black or metallic surfaces without scanning spray. Integrated blue-white and infrared supplemental lighting also supports detailed color mapping across different environments.
AI-powered texturing, hole filling, and body reconstruction help transform captured data into clean, 3D-print-ready models with minimal post-processing. Whether you are replicating figures, customizing mechanical parts, creating cosplay accessories, preserving artwork, or scanning people, Creality Pika makes professional 3D capture faster and more accessible.
Key Features
- Dual scanning technology: blue seven-line laser and NIR structured light
- Accuracy of up to 0.03 mm
- Scanning speed of up to 110 FPS with a PC
- Wireless scanning with Wi-Fi 6

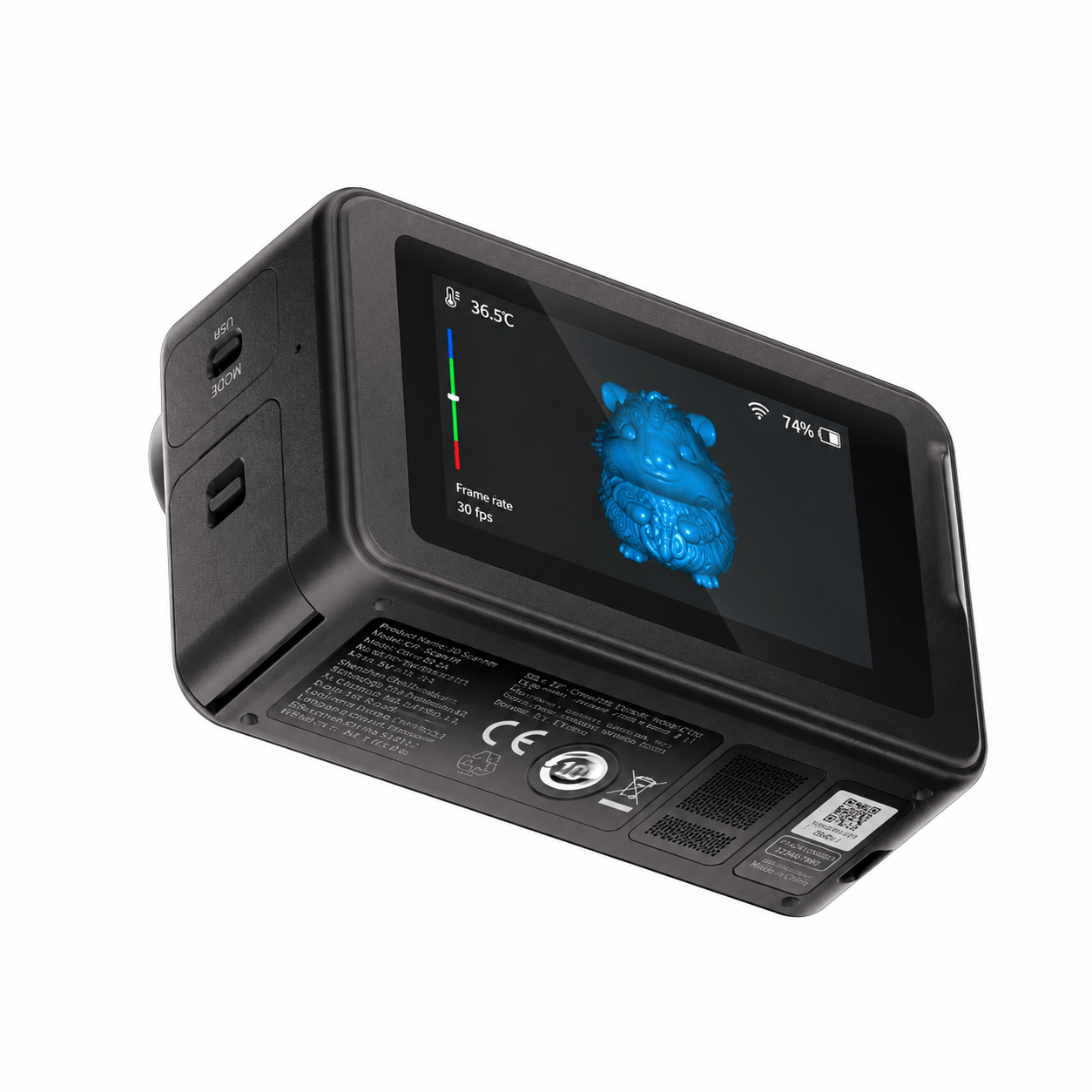

- Built-in 2.97-inch touchscreen
- Marker-free NIR scanning
- Spray-free scanning of black and metallic surfaces
- Outdoor scanning in lighting up to 110,000 lux
- AI texturing, hole filling, and body reconstruction
- Full-color texture capture
- Two replaceable 3350 mAh batteries included
- Lightweight 260 g handheld design
- Compatible with iOS, Android, Windows, and macOS
Specifications
| Specification | Blue 7-Line Laser | NIR Structured Light |
|---|---|---|
| Accuracy | Up to 0.03 mm¹ | 0.1 mm¹ |
| 3D resolution | 0.1–2 mm | 0.15–2 mm |
| Scanning speed with phone | Up to 40 FPS | Up to 20 FPS |
| Scanning speed with PC | Up to 110 FPS | Up to 30 FPS |
| Minimum scan volume | 5 × 5 × 5 mm | 50 × 50 × 50 mm |
| Maximum scan volume | 1,000 × 1,000 × 1,000 mm | 2,000 × 2,000 × 2,000 mm |
| Working distance | 160–400 mm | 200–1,000 mm |
| Alignment modes | Marker / Global Marker | Marker / Global Marker / Geometry / Texture |
| Outdoor scanning | ≤110,000 lux | ≤80,000 lux with filter |
General Specifications
| Specification | Details |
|---|---|
| Color mapping | Supported |
| Supplemental lighting | 4 blue-white dual-color LEDs + 4 infrared LEDs |
| Laser safety | Class I |
| Product weight | 260 g |
| Product dimensions | 100 × 60 × 42.5 mm |
| Calibration board | High-precision calibration board |
| Processor | Eight-core CPU, 2.0 GHz |
| Display | 2.97-inch touchscreen |
| Battery | Replaceable 3350 mAh battery; backup battery included |
| Charging power | 10 W |
| Wireless connectivity | Wi-Fi 6 |
| Supported systems | iOS, Android, Windows, and macOS |
| Operating temperature | -10°C to 40°C |
| Operating humidity | 10–90% RH |
¹ Accuracy is measured under laboratory conditions. Actual performance may vary depending on vibration, temperature, operating technique, and other environmental factors.
