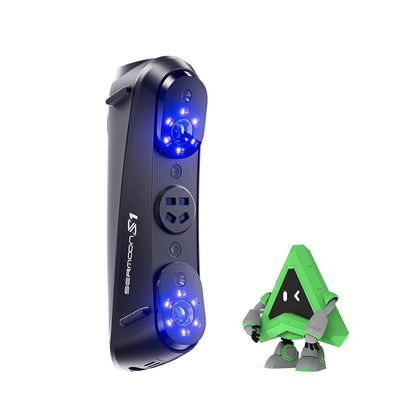

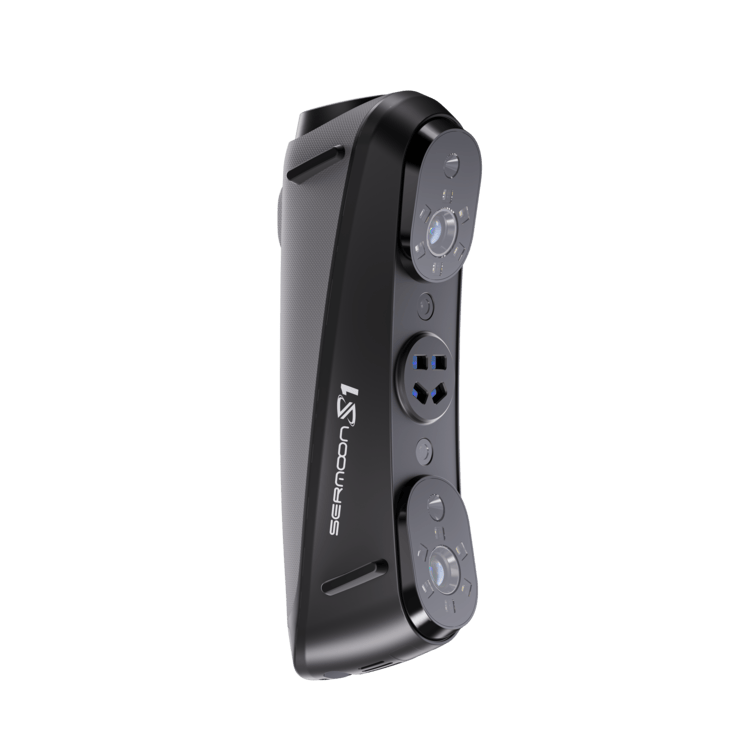

Creality 3d scanner Sermoon S1

Name: Creality 3d scanner Sermoon S1
Brand: CrealityUAE
SKU: 4008050063
Price: 12650.00 AED
Availability: InStock

SKU:4008050063

Dhs. 12,650.00

Sale Sold out

Taxes included. Shipping calculated at checkout.

Quantity

Versatile to the core, accurate evermore

A Truly Versatile Professional Scanner

Multi-Light Versatility

1 + 7 + 34 Blue Lasers+ NIR

High Accuracy

· Volumetric Accuracy: 0.02mm + 0.08mm/m

High Efficiency

· Scanning Speed up to 90 FPS

· Larger FOV for Fasten Scanning of Large Objects

· Innovative 4-Lens NIR Structured Light Enables Efficient, Marker-Free Scanning of Medium to Large Objects.

Versatile Size Scanning

· Scan objects ranging from 5 mm to 4000 mm (from Coins to Entire Vehicles)

User-Friendly

· Spray-free for Black or Metal Surfaces

· Excellent Outdoor Performance

· Marker-Free Scanning for Faces & Large Objectts

· Support Wireless Operation(with Optional Accessory)

Intelligent

· Temperature Compensation Algorithm for Stable Long-Term Use

· AI-Powered Scanning Software Simplifies Complex Workflows

· Seamlessly Integrates with Professional Software,Supporting Standard Formats for Easy Post-Processing.

· High-Definition Color Reproduction

Full hardware upgrade

Multi-Light Versatility

Why Choose the Sermoon S1

1+7+34 Laser Line+ NIR

Reveal deep holes, narrow gaps,
and recessed areas
Equipped with a precise single-line blue laser and an optimized optical path, the Sermoon S1 excels at scanning deep holes, narrow gaps, and recessed areas-capturing intricate details in hard-to-reach spaces with uncompromising accuraccy.

Deep Holes

Narrow Gaps

Recessed Areas

High Accuracy

Why Choose the Sermoon S1

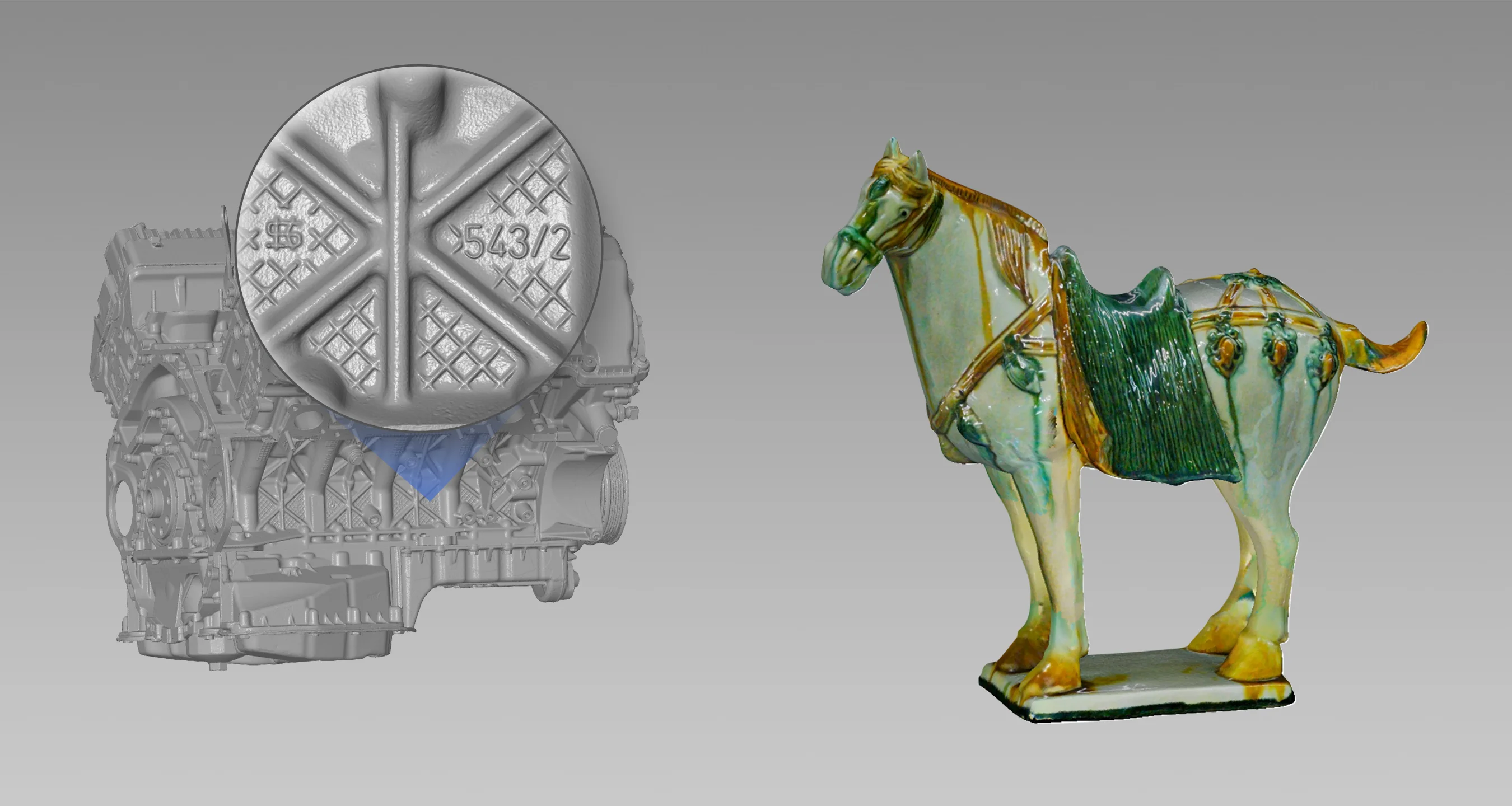

Sermoon S1 delivers metrology-grade precision,

making it ideal for high-accuracy,

non-destructive inspection across industries.

Scanning Accuracy

0.02mm

Volumetric Accuracy

0.02 mm + 0.08mm/m

High Efficiency

Why Choose the Sermoon S1

90FPS High-Speed Scanning

Achieve data acquisition speeds of up to 1,428,000 points per second and a maximum scanning frame rate of 90 frames per second.

Parallel lines/single line, up to 90fps

Cross lines up to 70fps

Innovative 4-Lens NIR Structured Light

Standard Stereo Lenses: provide high-accuracy scanning

Wide FOV: offer an ultra-wide field of view for fast, marker-free scanning of large objects and human bodies.

Efficient Scanning at Large Scale

A larger single-frame FOV reduces the number of required markers, improves tracking stability,

and significantly enhances scanning efficiency.

Line laser maximum: 506mmx433mm at600mm

Infrared maximum: (scans a human body in as little as 1 minute)

Versatile Size Scanning

Why Choose the Sermoon S1

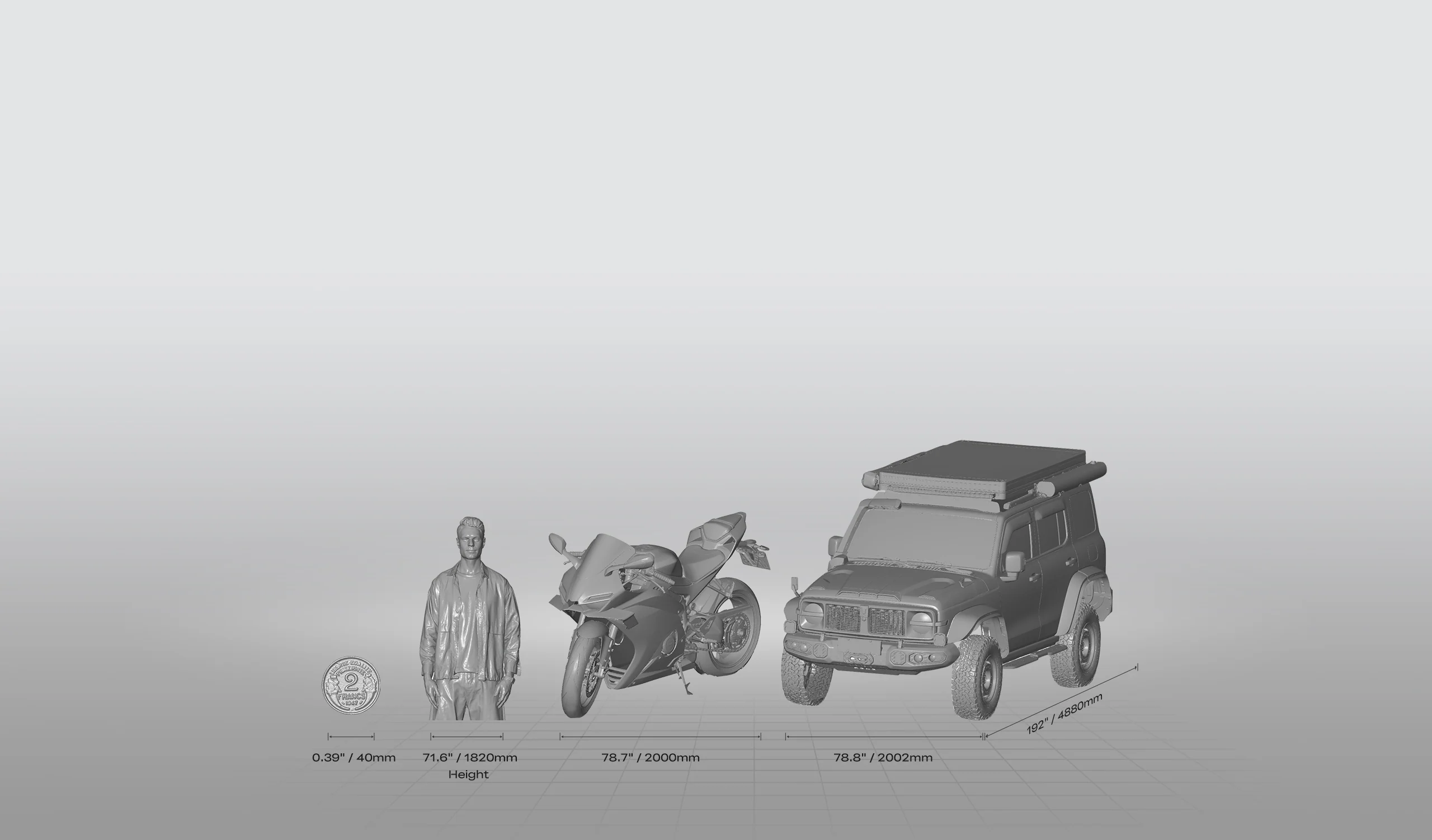

Scanning Range 5 mm³ - 4000 mm³

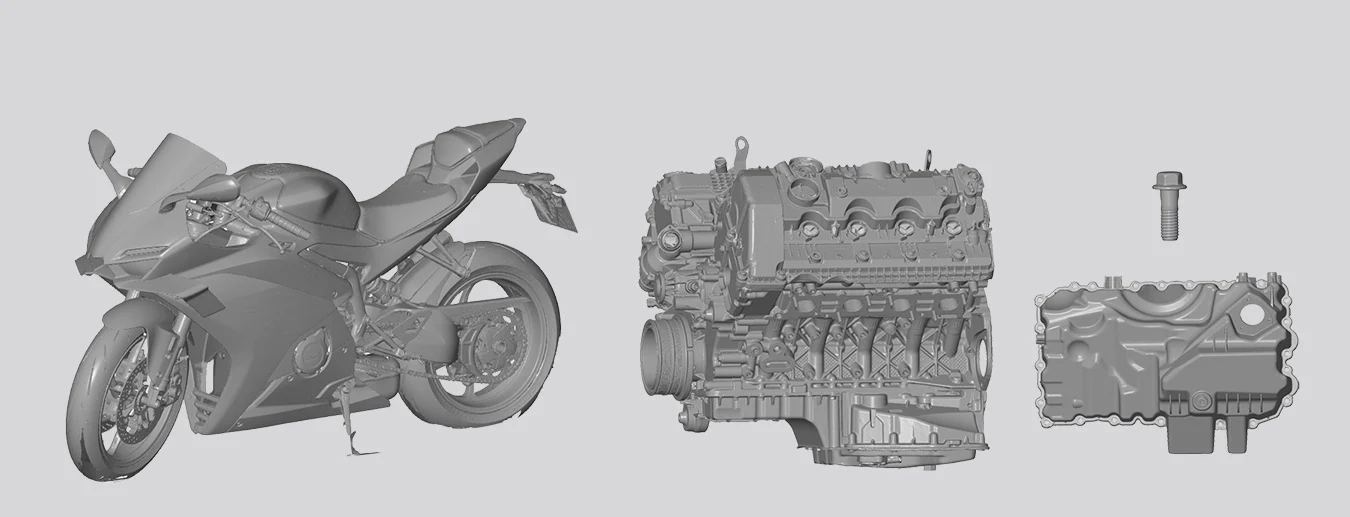

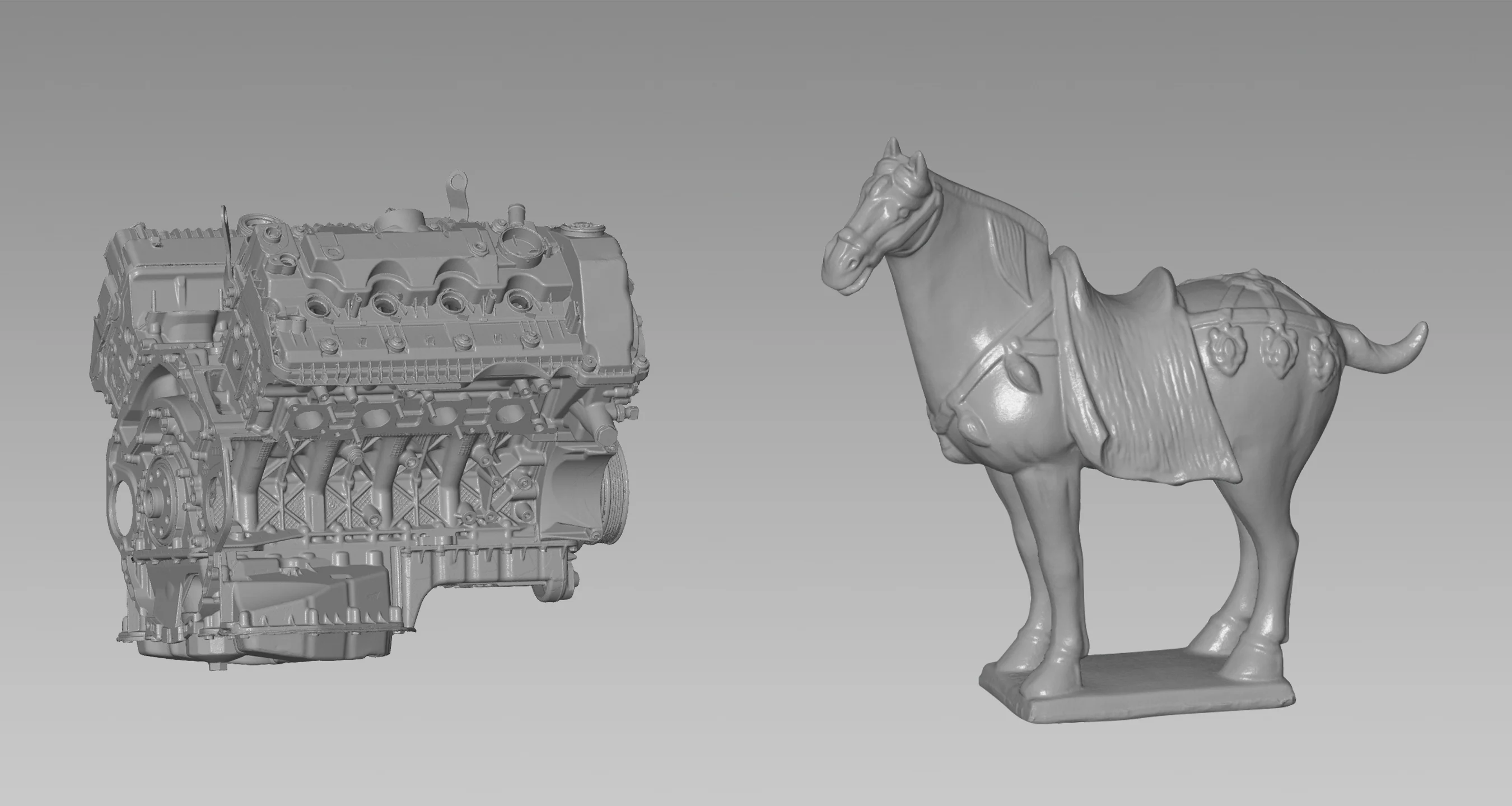

With a hybrid system combining blue laser lines and infrared structured light, the Sermoon S1 supports a wide scanning range-from as small as 5 × 5 × 5 mm³ to as large as 4000 × 4000 × 4000 mm³. Ideal for automotive components, coins, bolts, figurines, or even the human body.

User-Friendly Design

Why Choose the Sermoon S1

Flawless Performance Indoors & Outdoors

Whether under bright outdoor light or in complete indoor darkness, the Sermoon S1 delivers consistent performance.

· Single/cross-line laser: ≤100k lux

· 7-line laser: ≤50k lux

Scan Black/Metal Objects Without Sprays

Intelligent

Why Choose the Sermoon S1

Smart Stabilization for a Smoother Scan

Powered by an AI-driven temperature compensation algorithm and an efficient thermal management system, the Sermoon S1 maintains stable output even during prolonged sessions. Its One-Shot 3D imaging technology ensures higher tracking stability, effectively minimizing frame drops and misalignment caused by hand movement, significantly improving overall scanning accuracy and efficiency.

CrealityScan 4.0

AI-Powered Productivity, Made Simple

CrealityScan 4.0 is an upgraded professional 3D scanning software that combines user-friendly design with powerful image and point cloud processing. With step-by-step tutorials, one-click model processing, and intuitive editing tools, it makes scanning easier than ever.

Windows

macOS

Android

iPhone iOS

Faster

GPU acceleration enables real-time scanning up to 90 fps; laser line fusion is 2× more efficient

Easier

Stronger

Smarter

Seamless Integration to Inspection, Design, 3D Printing Softwares

The scan data can be imported into mainstream reverse engineering software, 3D inspection and design software programs, such as QuickSurface, Geomagic Design X, improving the workflow efficiency.
