Description

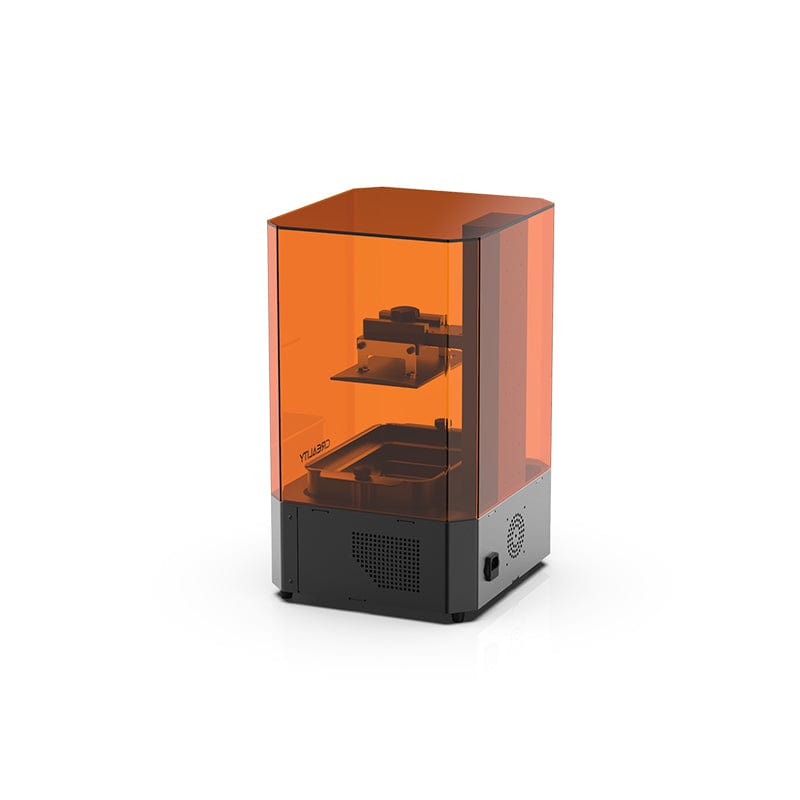

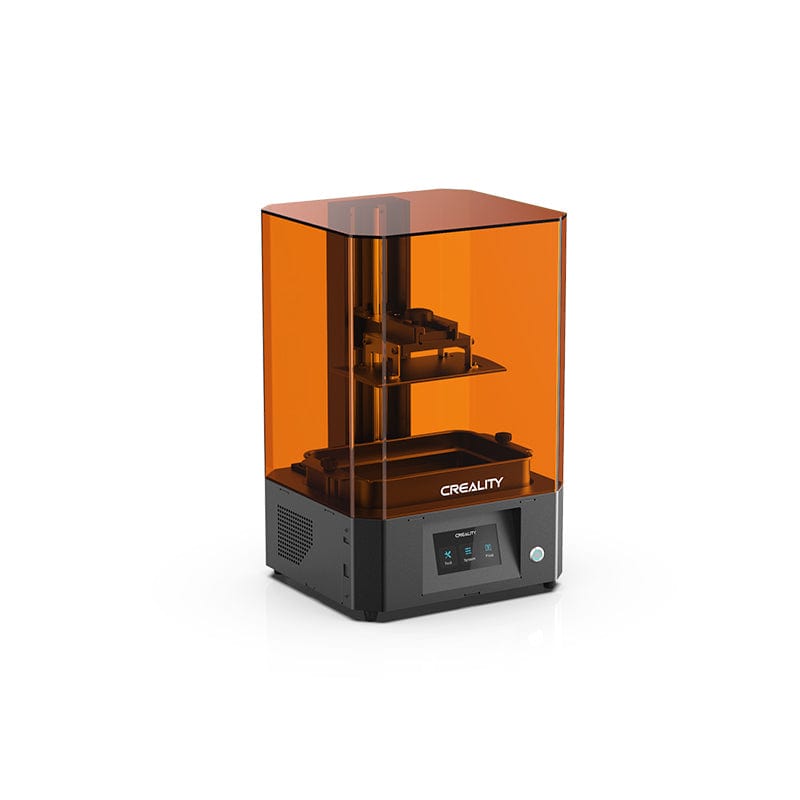

Creality LD-006 Resin 3D Printer
Eight Core Configurations:
8.9'' monochrome screen: Exposure time 1-4s
4K solid-state display: 3840x2400dpi
Rapid printing: Max. speed 60mm/h
Large printing size: 192x120x250mm
Directional matrix UV: Quartz LED
Stable Z-axis: Dual linear guide rails
4.3'' color touch screen: Better user experience
Cooling & purification: Dual-fan + active carbon
8.9'' Monochrome Screen- Max. printing speed 60mm/h
Service life up to 2000H quadrupled that of the color screen; Higher print speed as single-layer curing time reduced to 1-4s.
High Resolution 3840x2400dpi
A clear display of every detail guarantees perfect printing without blurs or grains.
4k resolution-3840x2400dpi; XY axis precision-0.05mm
Large printing size-192x120x250mm
Large print size for various demands and printing tasks.
New directional, Matrix light source: Matrix light source with Min. angle 2°, quartz LED, and even ultraviolet radiation, ensure printing quality.
Sturdy Z-axis Structure: Z-axis, based on dual linear slide rails and T-rod, achieves better precision and smoother surface.
Build-in Air Purification System: Dual- fan cooling system; Active carbon air purification for odor-free user experience.
Humanized creative resin vat:
1, Liquid level meter to prevent resin waste;
2, Vat stands for protecting the release film from being scratched or contaminated.
Product Parameters:
Machine size: 325x290x500mm
Printing size: 192x120x250mm
Machine weight: 13.5kg
XY axis precision:0.05mm
Printing speed: 1-4s/per layer
Layer thickness: 0.01-0.1mm
Touch screen: 4.3'' TN touch screen
LCD resolution: 3840x2400
Filament: 405nm UV sensitive resin
Light source: Matrix directional source
Z-axis type: Linear slide rail + T-rod
Resin vat: metal vat(plastic vat optional)
Platform material: aluminum alloy
Package weight: 17.5kg
Package size: 430x400x600mm
